7kW Home Charger

Small in Size, Big on Features

Contact Us
1

home chargingac

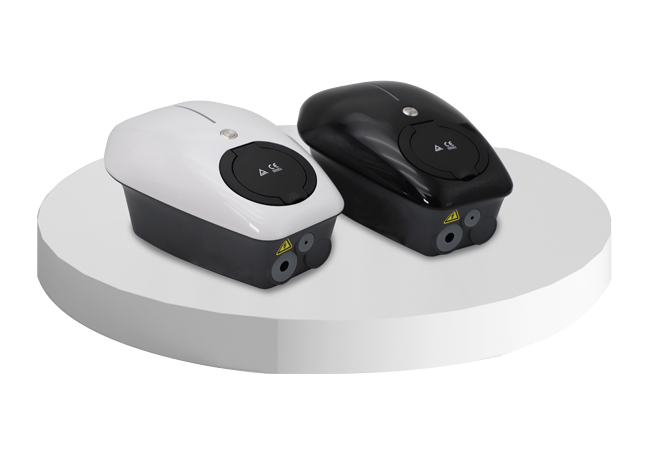

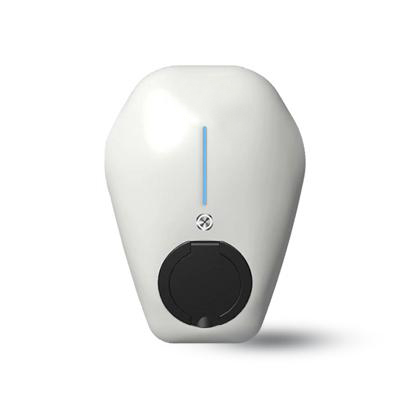

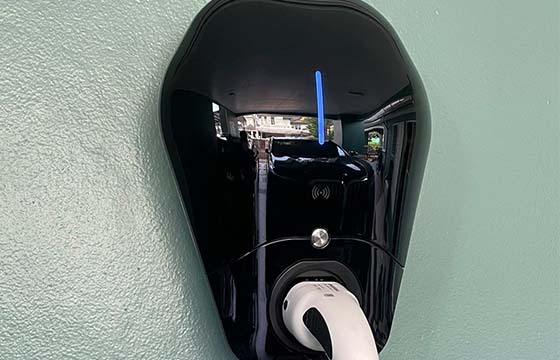

7kW Home Charger

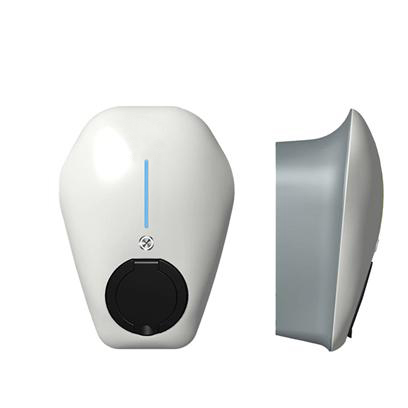

Charging power 7kW or 11kW optional

  • Single phase 32A 7kW or three phase 16A 11kW
  • Compact size fit in any location
  • Ethernet, Wi-Fi, Bluetooth connection
  • Charging control with mobile App
  • Tethered type or socketed type



CERTIFICATIONS

IDEAL FOR

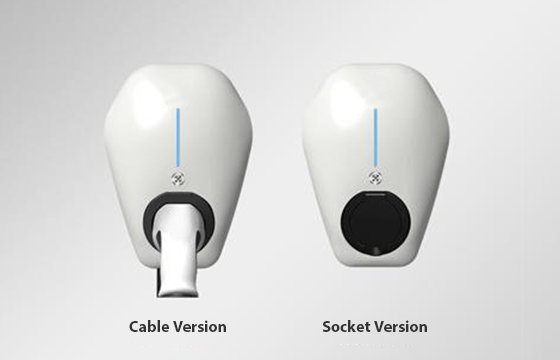

cable or socket ev charger grasen

Tailored Charging Solution

  • LED breathing light(color customizable) indicates the charging status

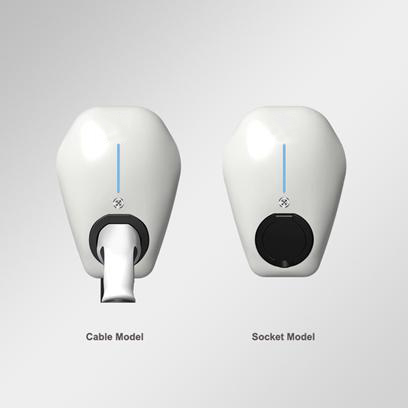

  • Fixed cable or socket configuration is available
  • IP55, suitable for indoor and outdoor use
  • Physical button supporting custom setting

Latest Bluetooth Technology

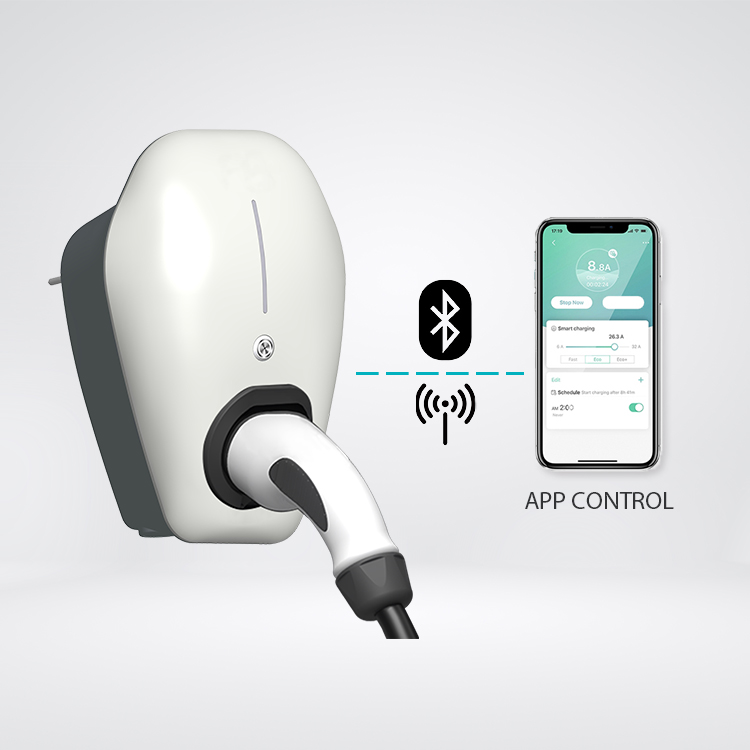

  • Start, stop, and manage the charger via the Internet/Bluetooth connection
  • Mobile App can work seamlessly with or without a network connection
  • Suited for underground parking, apartment buildings, and offices
  • Data will be synchronized between the phone and back-end once the internet has coverage

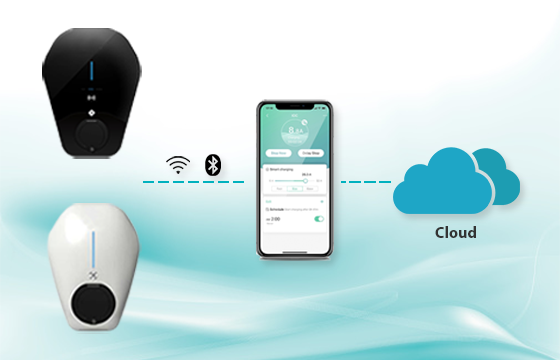

ev charger wifi and bluetooth connection

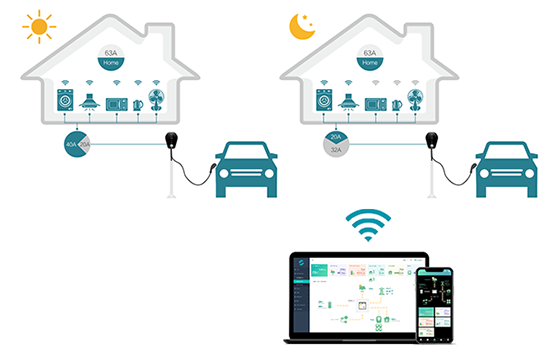

smart charging grasen

Smarter Charging

  • Schedule your charging when rates are lower
  • Compatible with dynamic load balancing
  • Remote control and monitoring
  • Fully compatible with solar installation and battery storage system

All-in-one EV charging solution

  • Complete EV charging solution

    Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
  • Training program

    Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
  • After-sales service

    Professional online service guidance within 24 hours for customers who encounter any problems during use.

General Specifications

Power 7kW 11kW
Input Voltage Single Phase 230V Three Phase 400V
Output Current Max. 32A Max. 16A
Working Frequency 50~60Hz
Connector Type Type-2 Socket or Type-2 Tethered 5m
RCD 30mA AC & 6mA DC IEC62955 & IEC61008 certified
Electrical Protection Over current, Under voltage, Over voltage, Over temperature,
Surge protection, Short circuit, Ground fault
Network Connectivity Ethernet, WiFi, and Bluetooth
Communication Protocols OCPP1.6J, OCPP2.0
Working Temperature -30 °C ~ 50 °C
Storage Temperature -40 °C ~ 70 °C
Working Humidity 5%~95% Non-Condensing
Ingress Protection IP55
Certification CE, IEC 61851-1, IEC 62196-2
Indications Standby(Blue), Charging(Flashing Blue), Fault(Red), Waring(Flash Red)
Buttons 1 x Physical Button
Mounting Type Wall Mount (default) / Pedestal Mount (optional accessory)
Dimension (H x W x D, mm) 288mm*208mm*128mm
