DC Fast Charging Stations

150kW ~ 420kW High Speed Charging with Guaranteed Safety

Contact Us
1

fast chargingdc

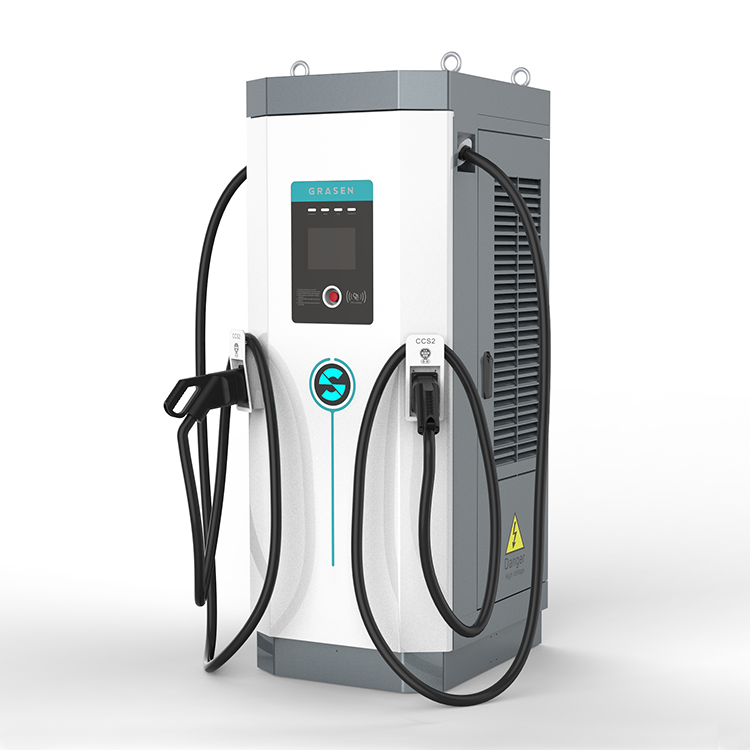

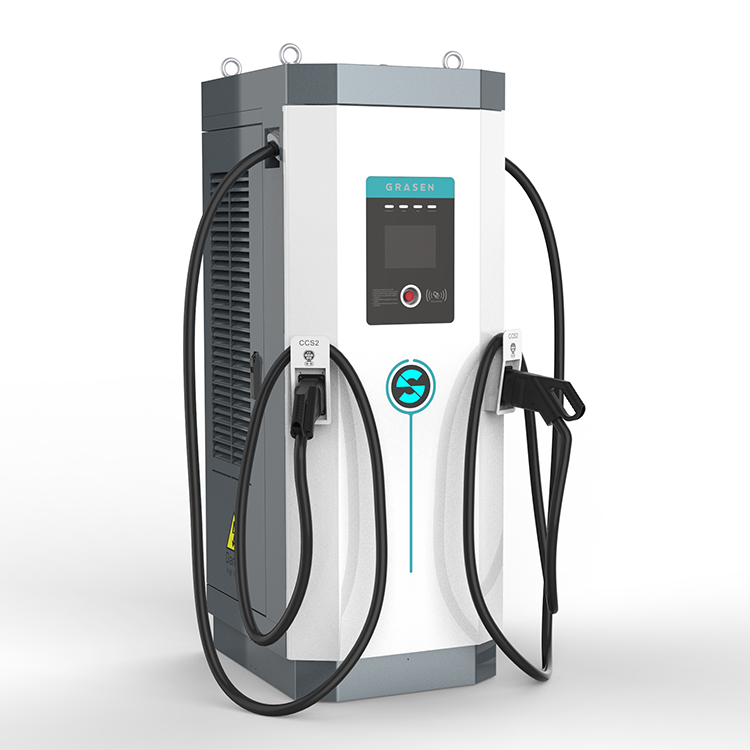

DC Fast Charging Stations

Simultaneously charging up to 2 EVs

  • Max output power 150kW, 180kW, 200kW, 240kW, 300kW, 360kW, 420kW optional, charging time 15 ~ 30mins.
  • Support multi-standard charging including CCS, CHAdeMO, and GB/T.
  • OCPP 1.6J & OCPP 2.0.
  • Intelligent charging and dynamic load balancing.
  • Flexible payment options include Mobile apps, RFID cards, and credit cards.

CERTIFICATIONS

IDEAL FOR

More Powerful

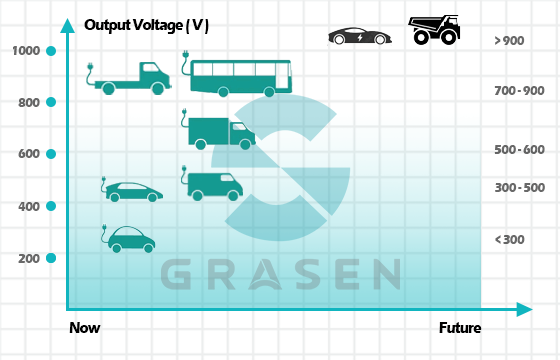

  • Wide output voltage range of 150~1000VDC, meeting various vehicles' needs
  • Charging 2 vehicles at the same time (CCS, CHAdeMO, and GB/T connectors optional)

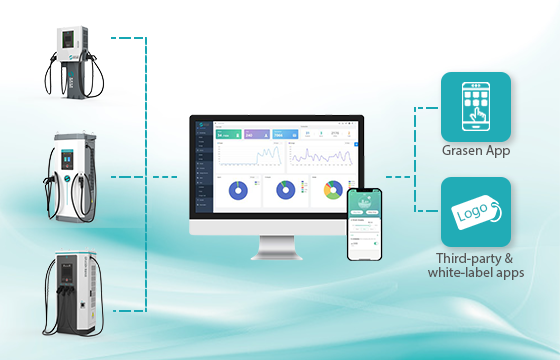

Smart Charging

  • Easily connect to any OCPP-based backend
  • Dynamic load balancing
  • Remote control and monitoring
  • Fully compatible with hybrid grid including the solar energy storage system
commercial ev charging stations cost software
ev charger safety

Guaranteed Security

  • IP54 protection rating, waterproof, dust-proof, and corrosion-resistant
  • Protection against over-voltage, over-temperature, under-voltage, short circuit, leakage, over-current, etc

Highly Customizable

  • Support OEM & ODM
  • White-labeled available
  • Tailored charging station management sub-portals
custom ev charging solutions

All-in-one EV charging solution

  • Complete EV charging solution

    Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
  • Training program

    Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
  • After-sales service

    Professional online service guidance within 24 hours for customers who encounter any problems during use.

General Specifications

ItemPower240KW300KW360KW420KW
InputInput Voltage400V±15%/440V±15%/480V±15%
Input Voltage TypeTN-S(Three Phase Five Wire)
Working Frequency45~65Hz
Power Factor≥0.99
Efficiency≥94%
OutputRated VoltageCHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc
Max. Output CurrentCHAdeMO 125A; CCS 200A; GBT 250A;
InterfaceDisplay8'' LCD Touchscreen
LanguageChinese, English, French, German, Spanish, Russian, etc.
PaymentMobile APP/RFID/POS
CommunicationNetwork Connection4G(GSM or CDMA)/Ethernet
Communication ProtocolsOCPP1.6J or OCPP2.0
Working EnvironmentWorking Temperature-30°C ~ +50°C
Storage Temperature-35°C ~ +55°C
Operating Humidity≤95% Non-Condensing
ProtectionIP55
Acoustic Noise<60dB
Cooling MethodForced Air-Cooling
MechanicalDimension(W x D x H)800mm*940mm*2200mm
Cable Length5m or 7m
RegulationCertificateTUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2
Charging InterfaceDIN70121/DIN70122/ISO15118

Success Stories

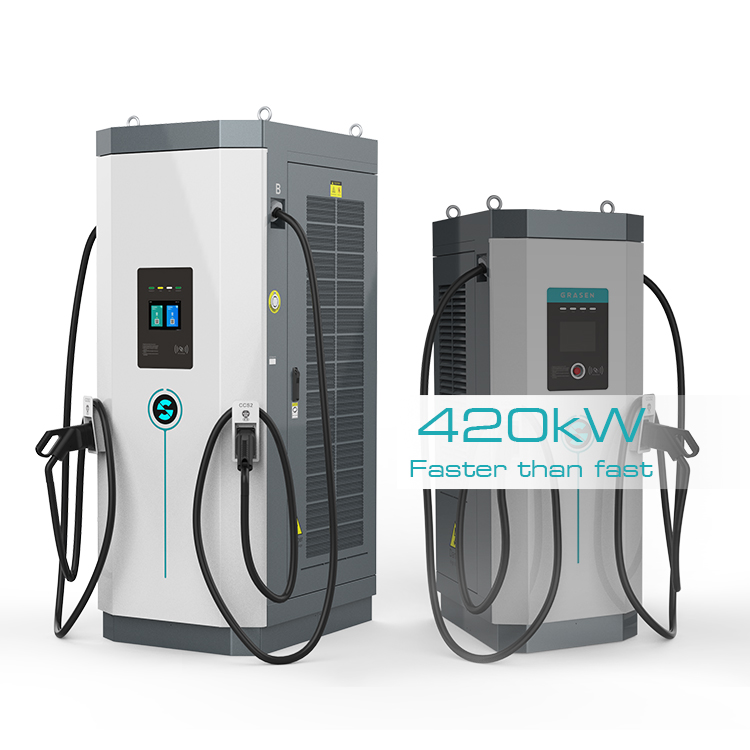

  • Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

    420kW Ultra-fast Charger
  • As a local charging network operator, one of our customers from the Republic of Kazakhstan built this EV charging station with Grasen DC fast chargers, which are used to charge Tesla.

  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    grasen dc fast charger case for america
  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    DC Fast Charger for Automaker
