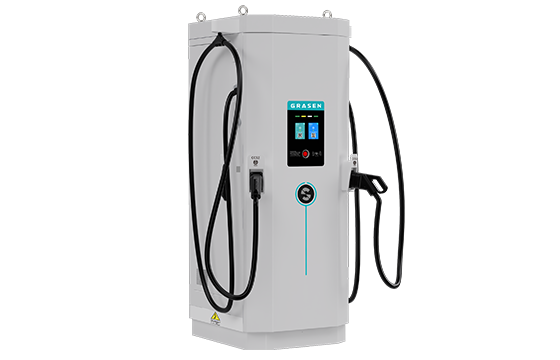

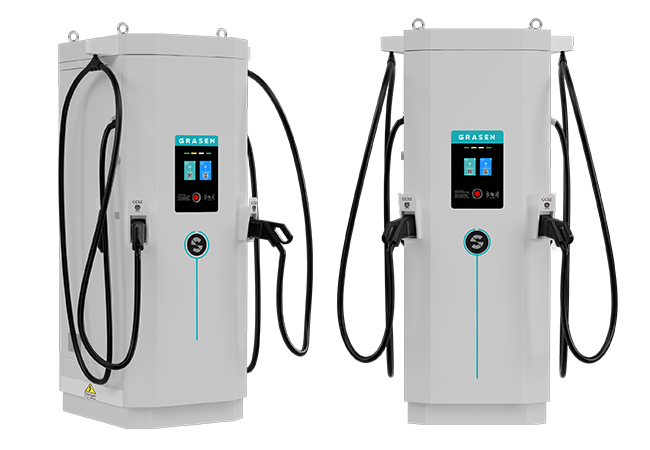

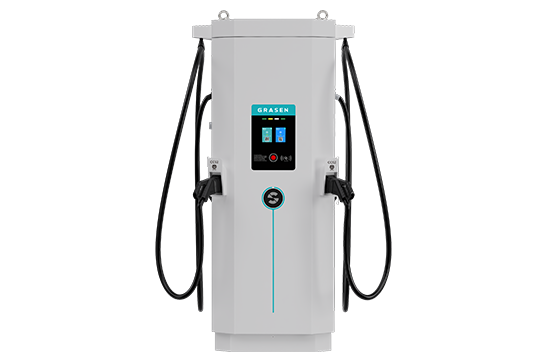

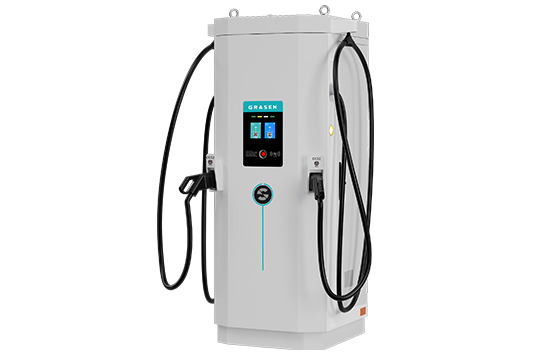

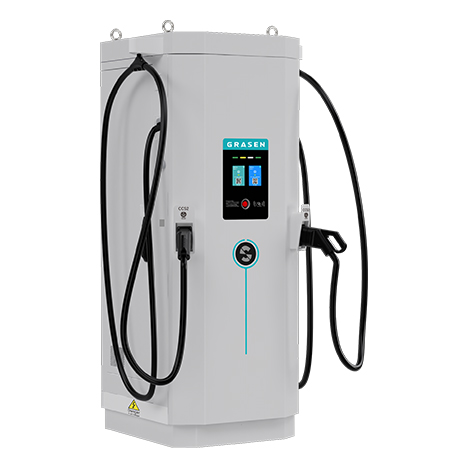

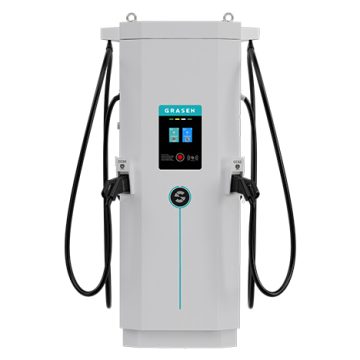

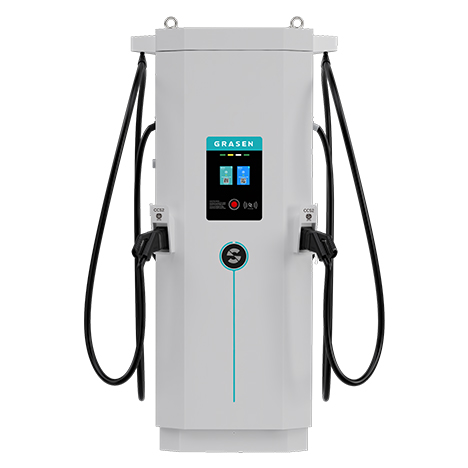

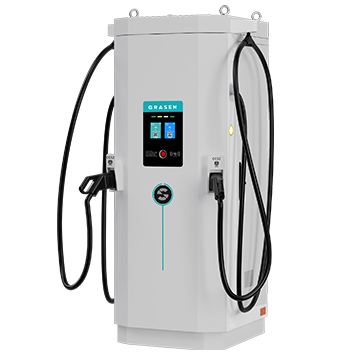

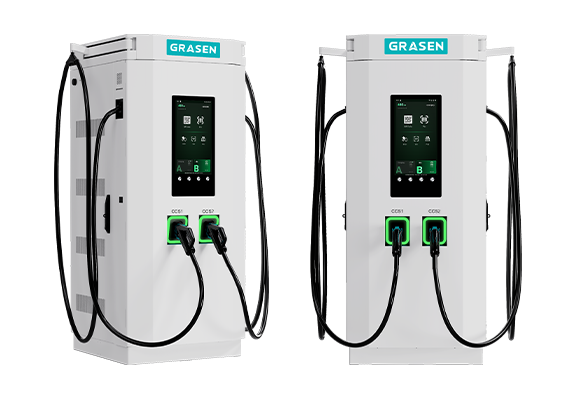

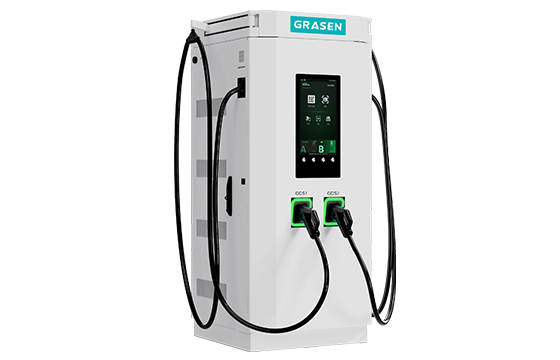

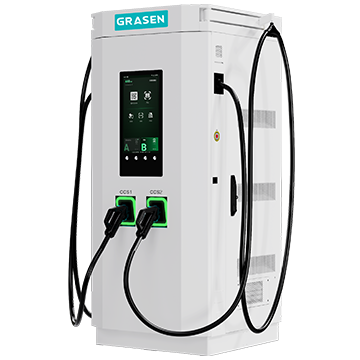

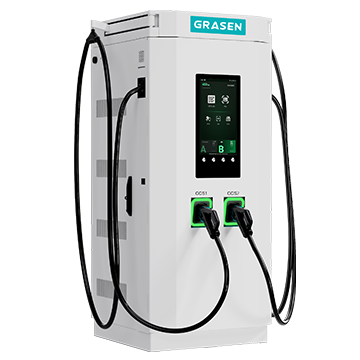

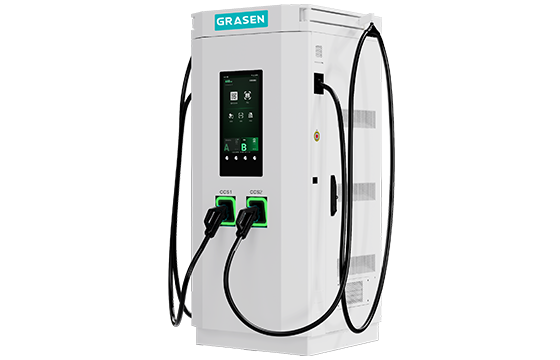

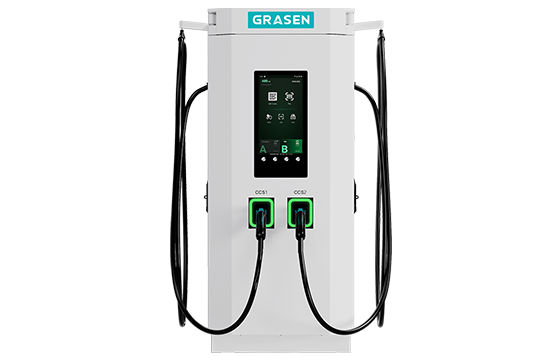

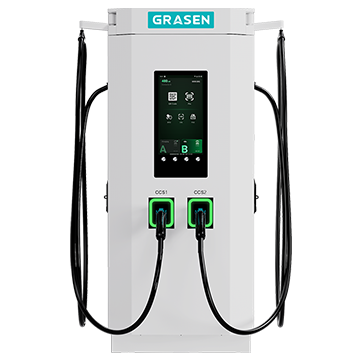

Thunder 480

fast chargingdc

Simultaneously charging up to 2 EVs

CERTIFICATIONS

Free Quote [email protected]

Wide output voltage range of 500~1000VDC, meeting various vehicles' needs
Charging 2 vehicles at the same time (CCS, CHAdeMO, and GB/T connectors optional)

IP55 protection rating, waterproof, dust-proof, and corrosion-resistant
Protection against over-voltage, over-temperature, under-voltage, short circuit, leakage, over-current, etc

Complete EV charging solution

Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
Training program

Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
After-sales service

Professional online service guidance within 24 hours for customers who encounter any problems during use.

Design
Power	240 kW-480 kW
Dimension(W x D x H)	8008852226mm
Charging Ports	Dual Ports
Cable Length	5m or 7m
Technical Data
Input Voltage	400V±15%/ 440V±10%/ 480V±10%
Input Voltage Type	TN-S
Working Frequency	45~65Hz
Power Factor	≥0.99
Efficiency	≥94%
Rated Voltage	CHAdeMO 500Vdc; CCS1/ CCS2 1000Vdc; GBT 1000Vdc
Output Current	CHAdeMO 125A; CCS1/ CCS2 400AMax; GBT 250A
UI
Display	8'' LCD Touch Screen
Language	Chinese, English, French, German, Spanish, Russian, etc.(Customized)
Payment	Mobile APP/ RFID/ POS
Network Connection	4G/ Ethernet
Communication Protocol	OCPP1.6J
Physical and Environmental Data
OperatingTemperature	-30°C ~ +50°C
Storage Temperature	-35°C ~ +55°C
Operating Humidity	≤95% Non-Condensing
Protection	IP55
Cooling Method	Forced Air Cooling
Certs & Standards
Certificate	NTC CE
Charging Interface	DIN70121/ DIN70122/ ISO15118
Customization Options
Cable Management System	Yes
Dehumidifier	Yes
Heater	Yes
POS Terminal	Yes
