DC EV Charging Station

60kW ~ 150kW High Speed Charging with Guaranteed Safety

Contact Us
1

fast chargingdc

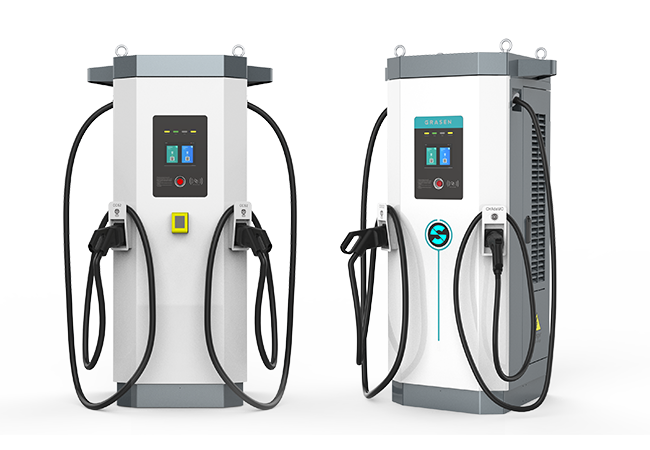

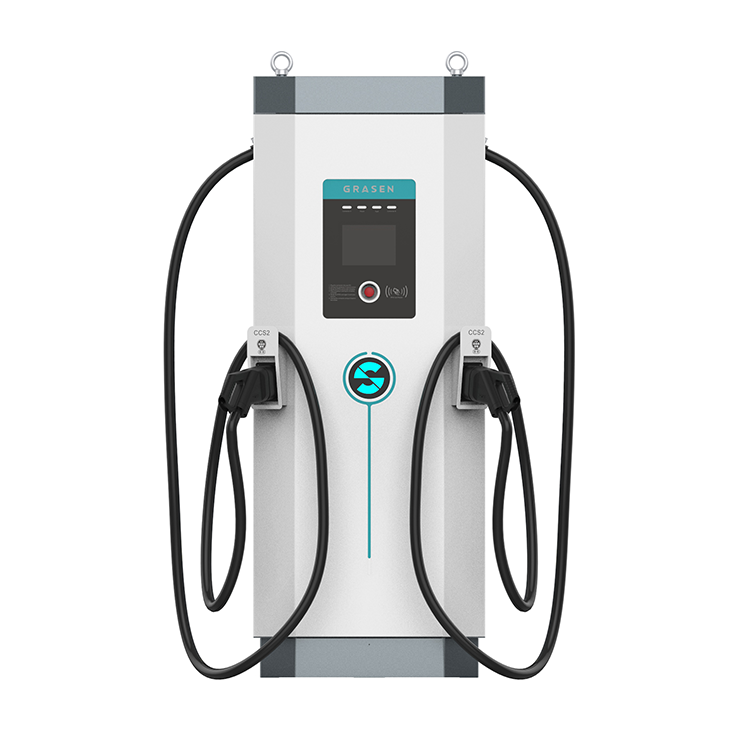

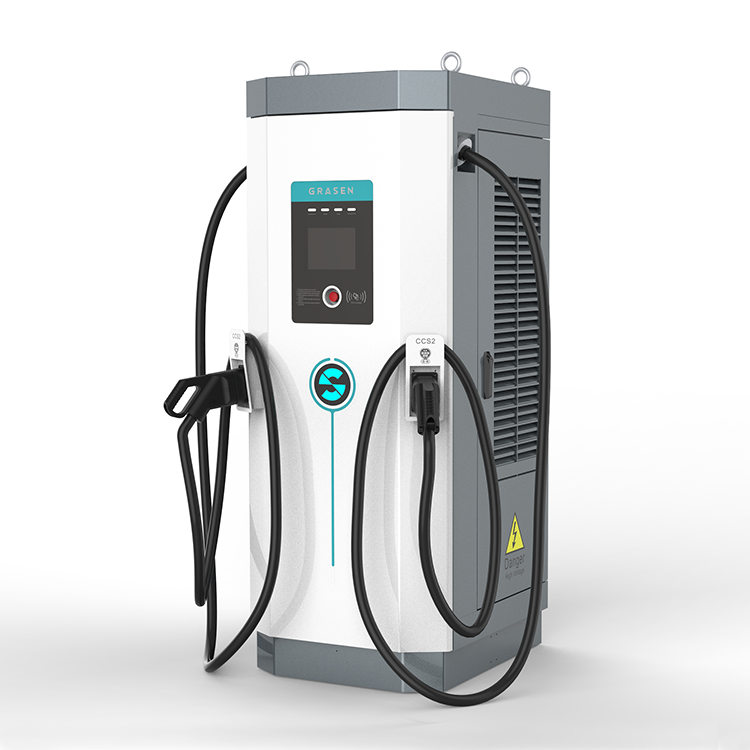

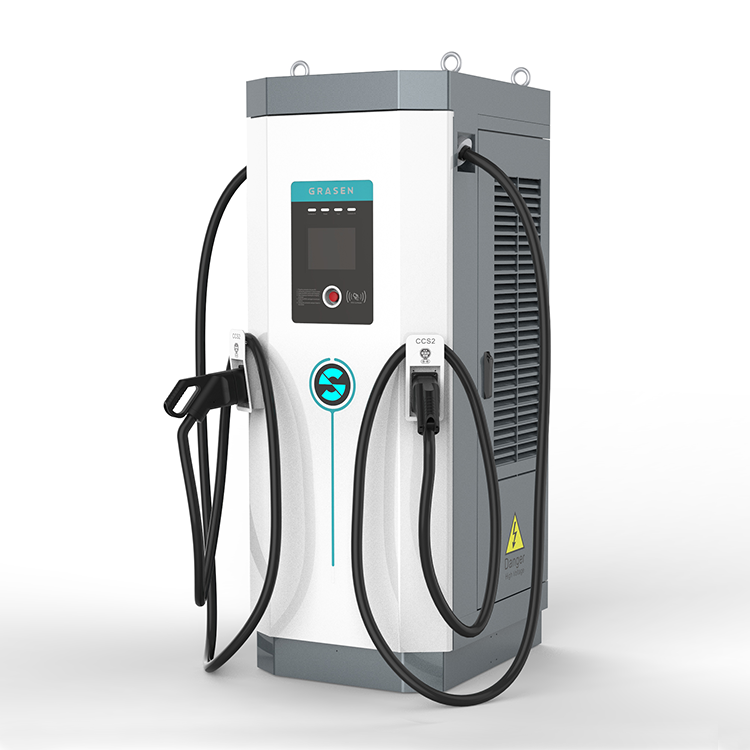

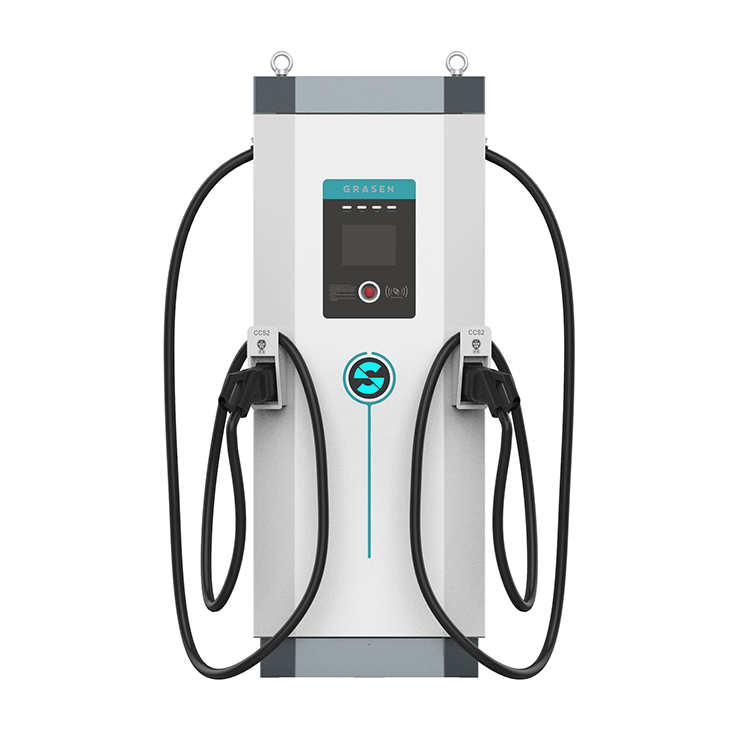

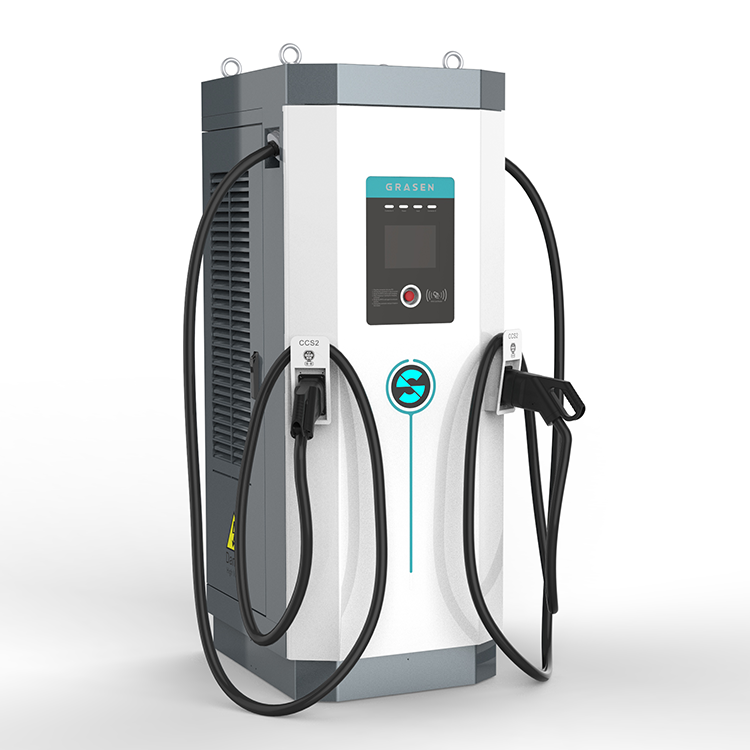

DC EV Charging Station

Simultaneously charging up to 2 EVs

  • Max output power 60kW, 90kW, 120kW, 150kW,charging time 30 ~ 60mins.
  • Support multi-standard charging including CCS, CHAdeMO, and GB/T.
  • 4G(GSM or CDMA)/Ethernet
  • OCPP 1.6J
  • Intelligent charging and dynamic load balancing

CERTIFICATIONS

IDEAL FOR

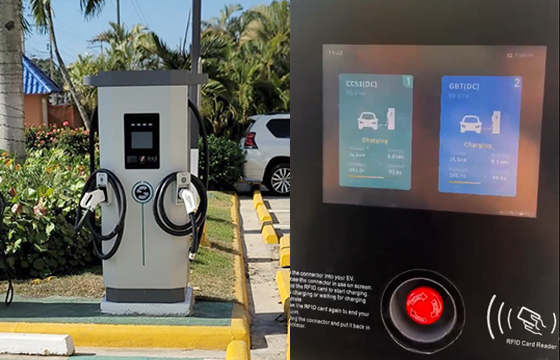

CCS1 GBT charging DC fast charger

Flexible & Powerful

  • Charging 2 vehicles at the same time (CCS, CHAdeMO, and GB/T connectors optional)
  • Max output 200A, 1000Vdc

Intelligent Control

  • Easily connect to any OCPP-based backend
  • Dynamic load balancing
  • Remote control and monitoring
  • Fully compatible with hybrid grid including the solar energy storage system

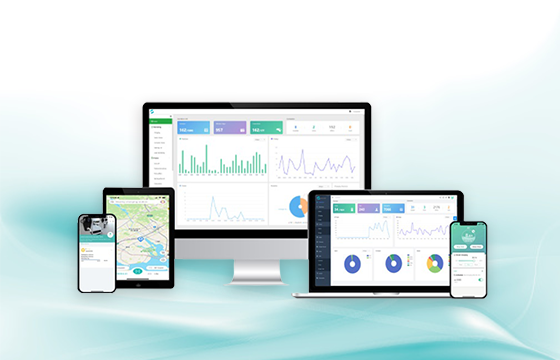

commercial ev charging stations cost software

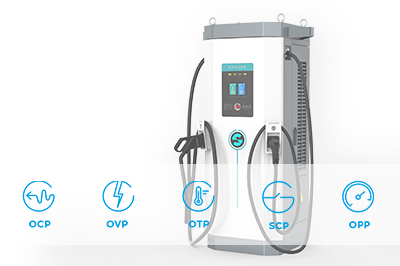

ev charger safety

Guaranteed Security

  • IP54 protection rating, waterproof, dust-proof, and corrosion-resistant
  • Protection against over-voltage, over-temperature, under-voltage, short circuit, leakage, over-current, etc

User-Friendly Interface

  • 8’’ LCD touchscreen
  • Multi-language UI supported
  • Custom UI with your brand

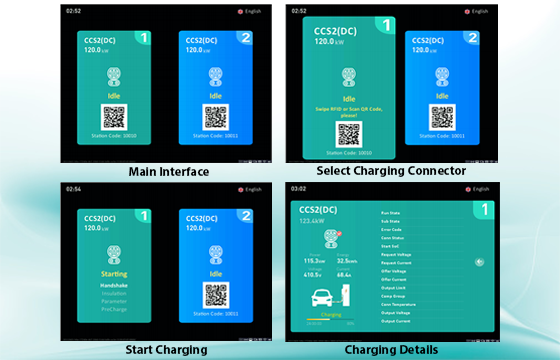

Grasen charger charging interface

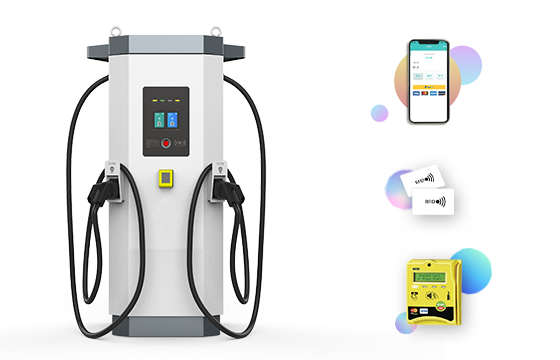

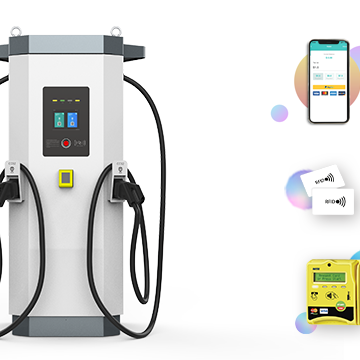

ev charger with credit card reader grasen

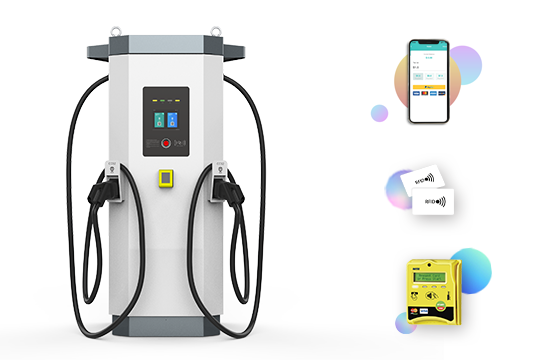

Flexible Payment Options

  • Custom EV charger with credit card reader
  • Paypal or credit card via. Mobile App
  • RFID card

All-in-one EV charging solution

  • Complete EV charging solution

    Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
  • Training program

    Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
  • After-sales service

    Professional online service guidance within 24 hours for customers who encounter any problems during use.

General Specifications

Item Power  60KW 90KW   120KW  150KW
Input Input Voltage 400V±15%/440V±15%/480V±15%
Input Voltage Type TN-S
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency ≥94%
Output Rated Voltage CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc
Max. Output Current CHAdeMO 125A; CCS 200A; GBT 250A;
Interface Display 8'' LCD Touchscreen
Language Chinese, English, French, German, Spanish, Russian, etc.
Payment Mobile APP/RFID/POS
Communication Network Connection 4G(GSM or CDMA)/Ethernet
Communication Protocols OCPP1.6J
Working Environment Working Temperature -30°C ~ +50°C
Storage Temperature -35°C ~ +55°C
Operating Humidity ≤95%
Protection IP54
Acoustic Noise <60dB
Cooling Method Forced Air-Cooling
Mechanical Dimension(W x D x H) 1006mm*640mm*1890mm
Cable Length 5m or 7m
Regulation Certificate TUV CE
Charging Interface DIN70121/DIN70122/ISO15118

Success Stories

  • Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

    420kW Ultra-fast Charger
  • Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.

    dc fast charger for audi
  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    DC Fast Charger for Automaker
  • Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.

    DC Charging Station for Tesla
