CCS EV Charger

80kW ~ 200kW High Cost-effective Level 3 DC Fast Charging Solution

Contact Us

fast chargingdc

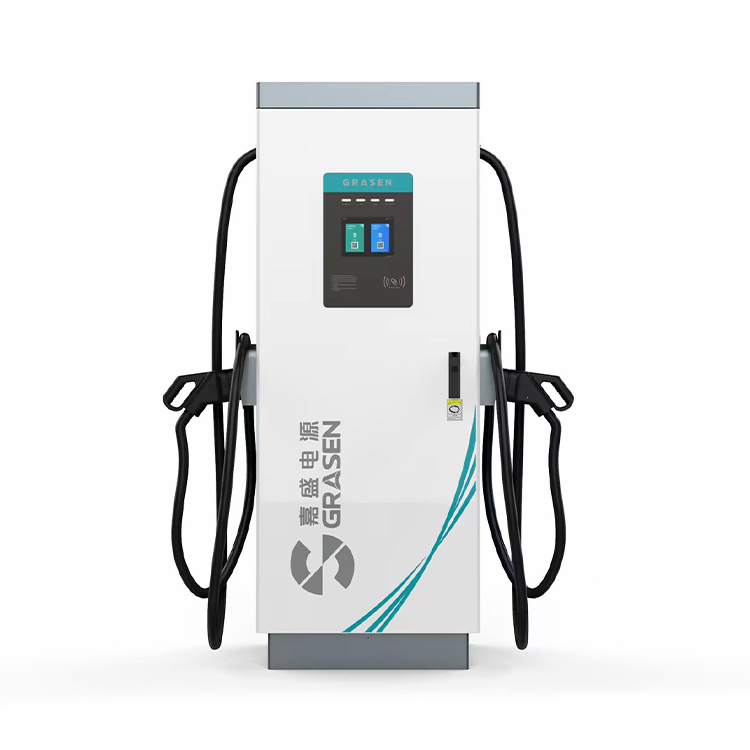

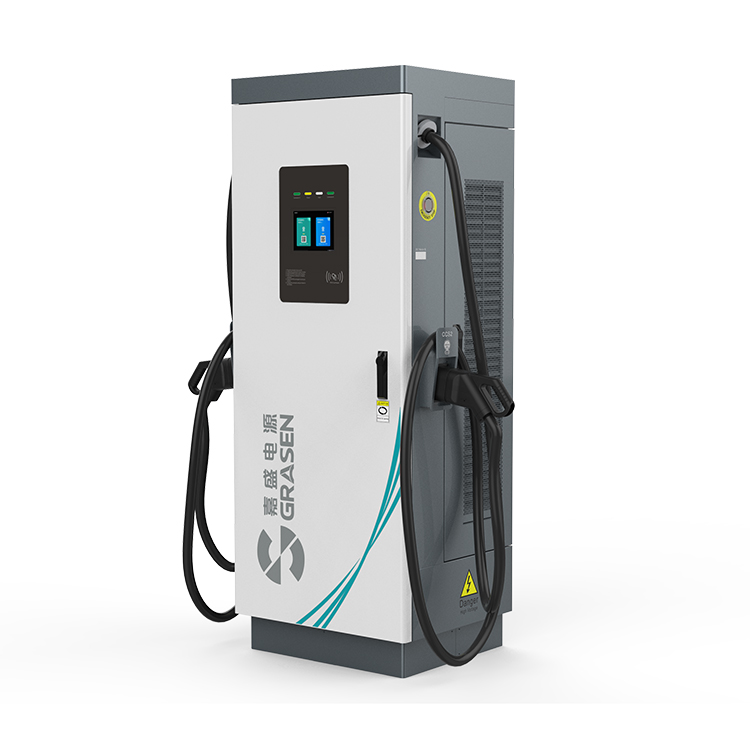

CCS EV Charger

Quick charge, big savings

  • Max output power 80kW, 120kW, 160kW, 200kW, charging time 30 ~ 60mins.
  • Flexible charging port options including CCS2, and GB/T.
  • OCPP 1.6J full profile compatible.
  • Remote update and diagnostics.
  • Intelligent charging and dynamic load balancing.



modular ev charger

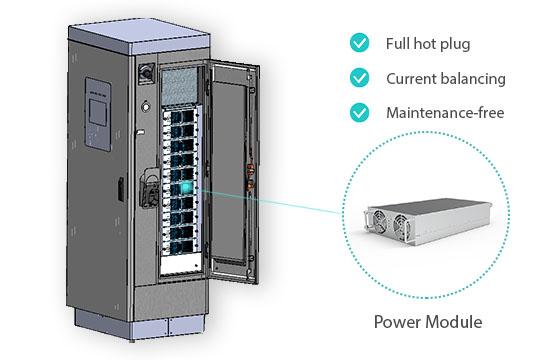

Flexible & Expandable

  • Modular power modules enable convenient maintenance
  • Expandable with available update slots

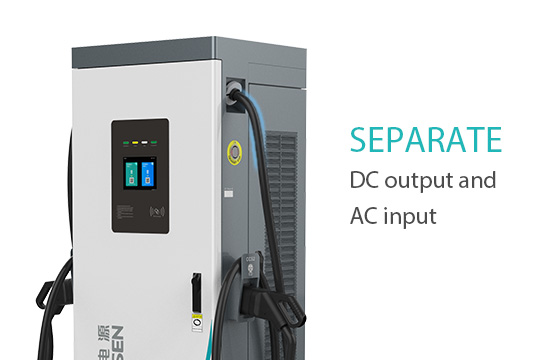

Safer Electrical Distribution

  • DC output on the upper part of the cabinet and separated from the AC input, making the overall layout more organized and safer
  • Effectively reduce the wear of the gun line when mopping the floor
high security dc charger
commercial ev charging stations cost software

Intelligent Control

  • Easily connect to any OCPP-based backend
  • Dynamic load balancing
  • Remote control and monitoring
  • Fully compatible with hybrid grid including the solar energy storage system

All-in-one EV charging solution

  • Complete EV charging solution

    Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
  • Training program

    Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
  • After-sales service

    Professional online service guidance within 24 hours for customers who encounter any problems during use.

General Specifications

Item Power  80KW 120KW   160KW  200KW
Input Input Voltage 400V±15%/440V±15%/480V±15%
Input Voltage Type TN-S(Three Phase Five Wire)
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency ≥94%
Output Rated Voltage CCS2 1000Vdc; GBT 1000Vdc
Max. Output Current CCS 200A; GBT 250A;
Interface Display 8'' LCD Touchscreen
Language Chinese, English, French, German, Spanish, Russian, etc.
Payment Mobile APP/RFID
Communication Network Connection 4G(GSM or CDMA)/Ethernet
Communication Protocols OCPP1.6J
Working Environment Working Temperature -30°C ~ +50°C
Storage Temperature -35°C ~ +55°C
Operating Humidity ≤95% Non-Condensing
Protection IP54
Acoustic Noise <65dB
Cooling Method Forced Air-Cooling
Mechanical Dimension(W x D x H) 700mm*590mm*1840mm
Cable Length 5m
Regulation Certificate NTC CE/IEC61851-1/IEC61851-23/IEC61851-21-2
Charging Interface DIN70121/DIN70122/ISO15118

Success Stories

  • Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

    420kW Ultra-fast Charger
  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    DC Fast Charger for Automaker
  • As a local charging network operator, one of our customers from the Republic of Kazakhstan built this EV charging station with Grasen DC fast chargers, which are used to charge Tesla.

  • Businesses that operate electric vehicle fleets have a growing demand for EV charging infrastructure. Check how our charging solution for the EV taxi fleet helps.

    Charging Solution for EV Taxi Fleet
