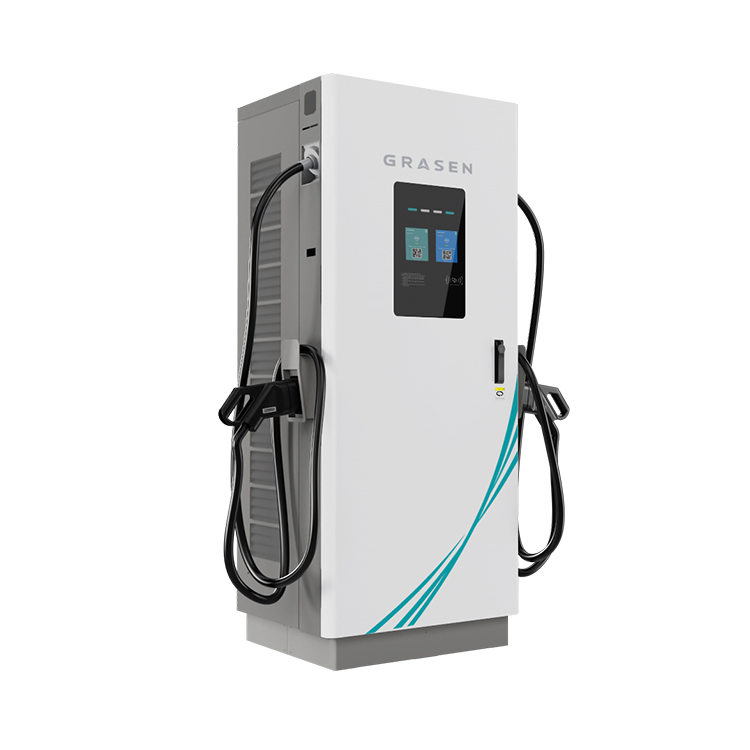

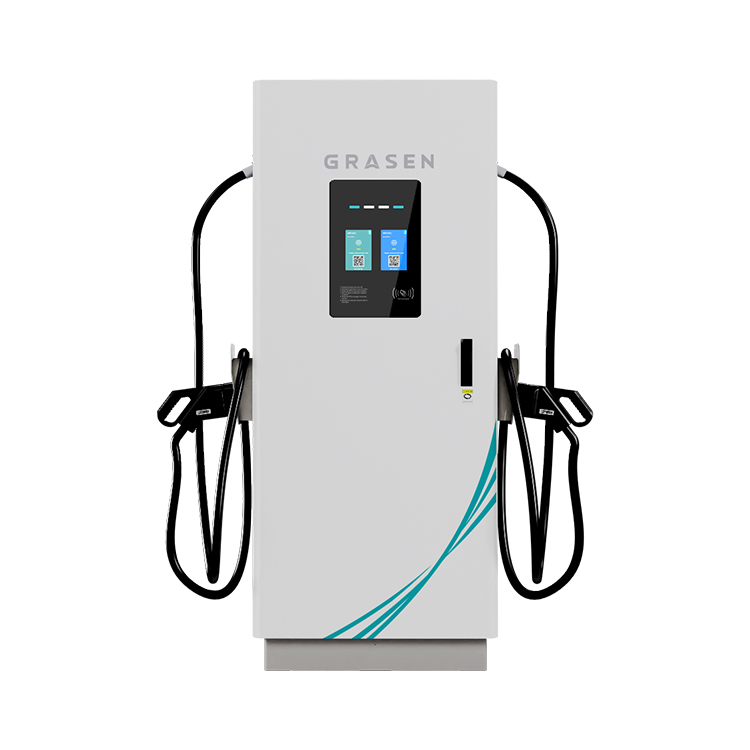

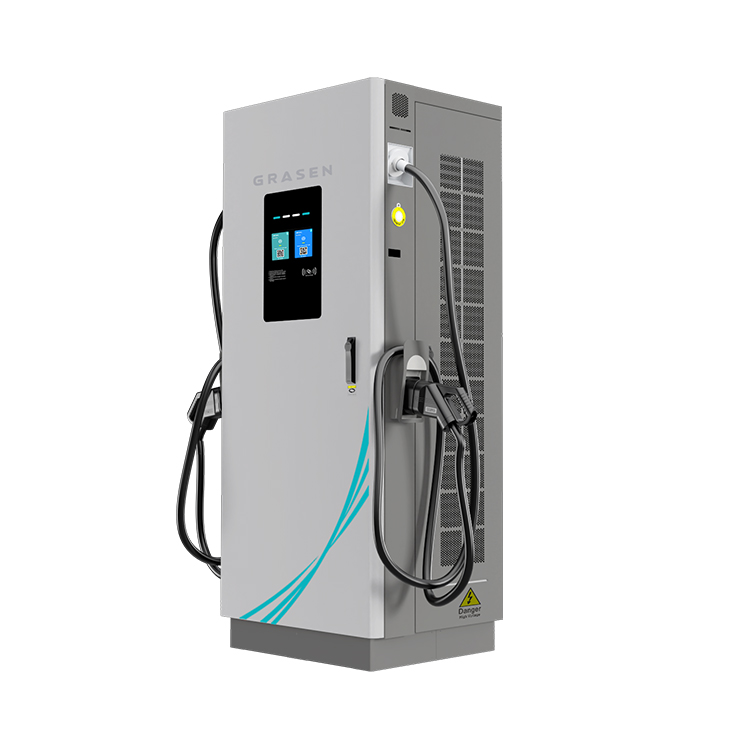

Solución de carga rápida CC de nivel 3 de alta rentabilidad de 40 kW ~ 240 kW
Contact Us
EV Chargerdc
Carga rápida, grandes ahorros
CERTIFICATIONS
Solución completa de carga de vehículos eléctricos
Programa de entrenamiento
Servicio postventa
| Diseño | ||
| Fuerza | 40kW-160kW | 160kW-240kW |
| Dimensión(W x D x H) | 700*490*1696mm | |
| Longitud del cable | 5m or 7m | |
| Puertos de carga | Dual Ports | |
| Datos técnicos | ||
| Voltaje de entrada | 400V±15%/440V±10%/480V±10% | |
| Tipo de voltaje de entrada | TN-S | |
| Frecuencia de trabajo | 45~65Hz | |
| Factor de potencia | ≥0.99 | |
| Eficiencia | ≥94% | |
| Tensión nominal | CHAdeMO 500Vdc; CCS1/CCS2 1000Vdc; GBT 1000Vdc | |
| Corriente de salida | CHAdeMO 125A; CCS1/CCS2 400A（Max） ; GBT 250A | |
| UI | ||
| Display | 8'' LCD Pantalla táctil | |
| idioma | Chino, inglés, francés, alemán, español, ruso, etc. (personalizado) | |
| pago | Mobile APP/RFID/POS | |
| Conexión de red | 4G/Ethernet | |
| Protocolo de comunicación | OCPP1.6J | |
| Datos físicos y ambientales | ||
| Temperatura de funcionamiento | -30°C ~ +50°C | |
| Temperatura de almacenamiento | -35°C ~ +55°C | |
| Humedad de funcionamiento | ≤95% Non-Condensing | |
| Protección | IP54 | |
| Método de enfriamiento | Enfriamiento por aire forzado | |
| Certificados y estándares | ||
| Certificado | TUV CE | |
| Interfaz de carga | DIN70121/DIN70122/ISO15118 | |
| Opciones de personalización | ||
| Sistema de gestión de cables | Si | |
| Deshumidificador | Si | |
| Calentador | Si | |
| Terminal POS | Si | |
| Gabinete de acero inoxidable | Si | |
