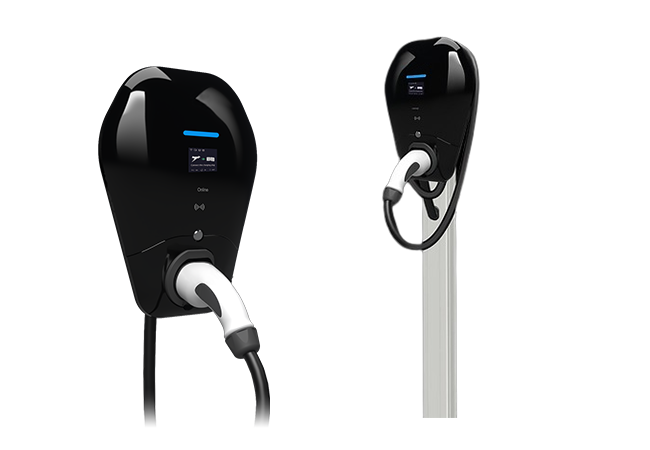

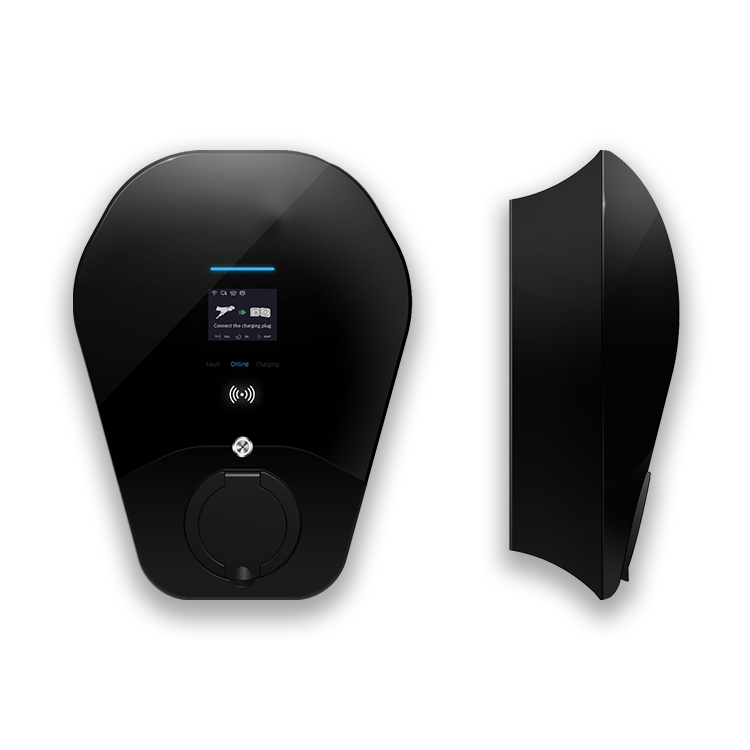

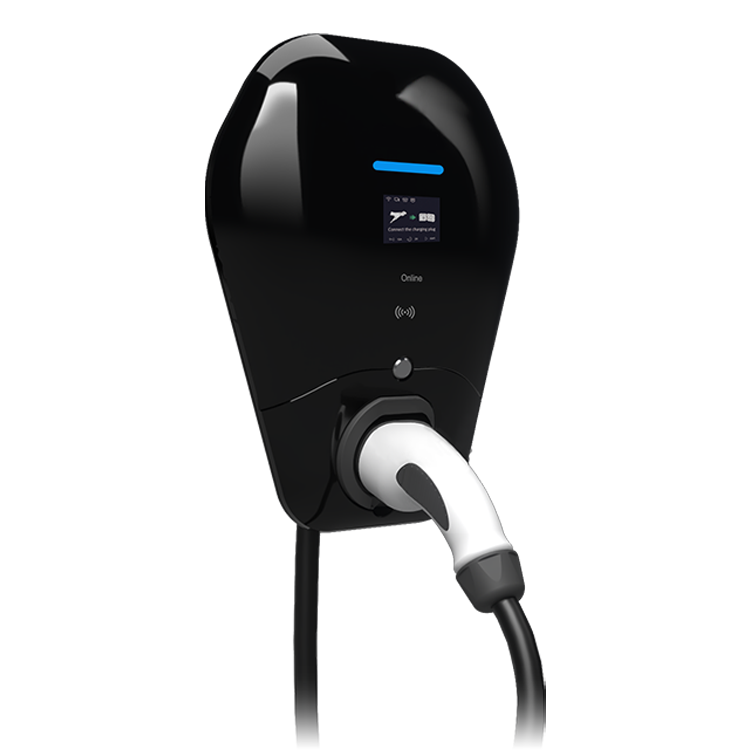

home chargingac
Charging power 7kW or 22kW optional
CERTIFICATIONS
Complete EV charging solution
Training program
After-sales service
| Power | 7kW | 22kW |
| Input Voltage | Single Phase 230V | Three Phase 400V |
| Output Current | Max. 32A | Max. 32A |
| Working Frequency | 50~60Hz | |
| Connector Type | Type-2 Socket or Type-2 Tethered 5m | |
| RCD | 30mA AC & 6mA DC | |
| Electrical Protection | Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault |
|

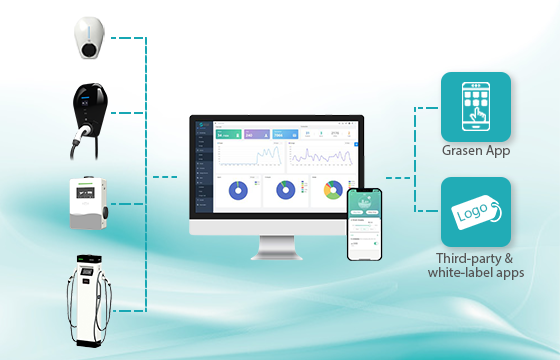

| Network Connectivity | Ethernet, WLAN, Cellular | |
| Communication Protocols | OCPP1.6J, OCPP2.0 | |
| Working Temperature | -30 °C ~ 50 °C | |
| Storage Temperature | -40 °C ~ 70 °C | |
| Working Humidity | 5%~95% Non-Condensing | |
| Ingress Protection | IP55 | |
| Indications | Standby(Blue), Charging(Flashing Blue), Fault(Red), Waring(Flash Red) | |
| Buttons | 1 x Physical Button | |

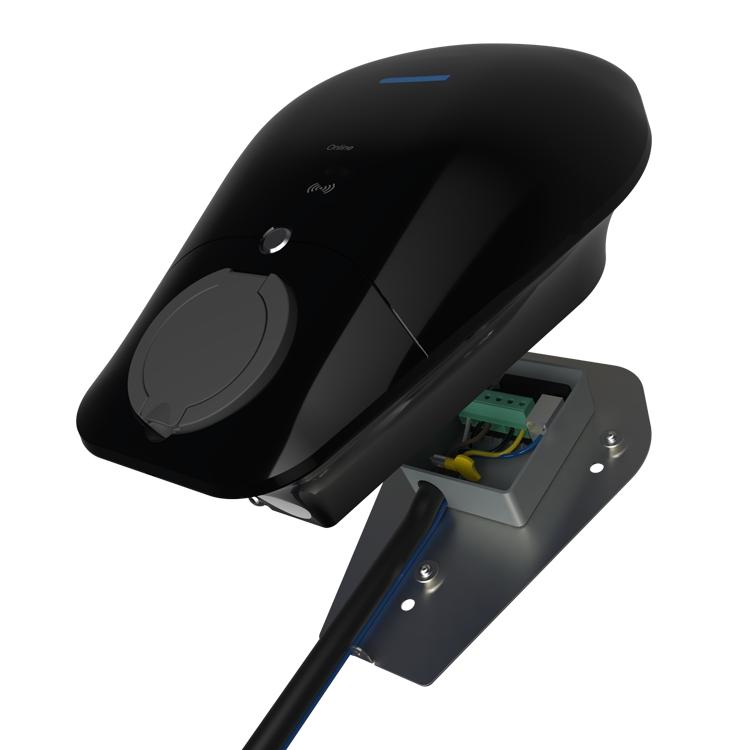

| Mounting Type | Wall Mount (default) / Pedestal Mount (optional accessory) | |
| Dimension (H x W x D, mm) | 380mm*288mm*141mm | |
| Certification | CE, IEC 61851-1, IEC 62196-2 | |
| RFID | ISO 14443 A/B | |
| Display | 2.8'' LCD | |
| Weight | 4.6Kg Socket Version 6.7Kg Tethered Version |
5.1Kg Socket Version 7.7Kg Tethered Version |
