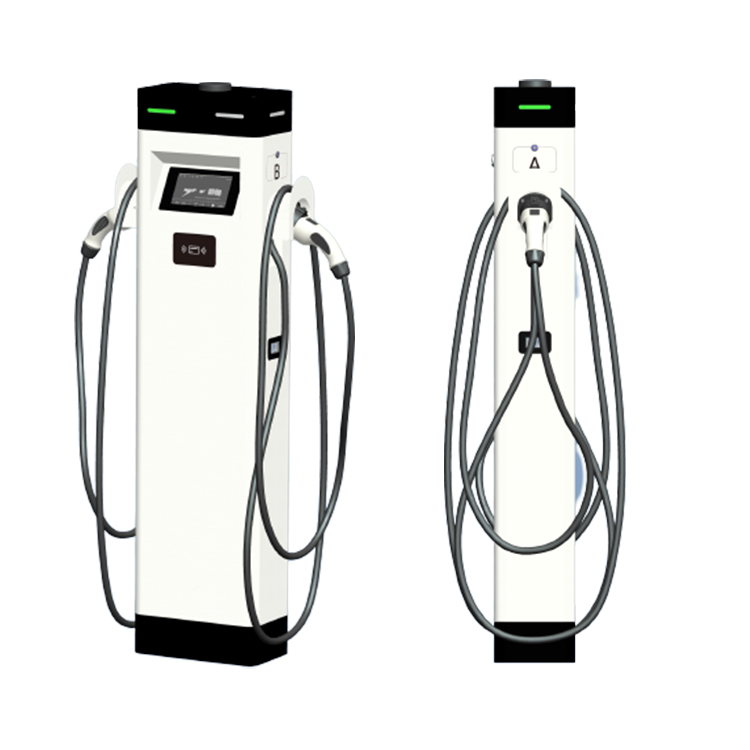

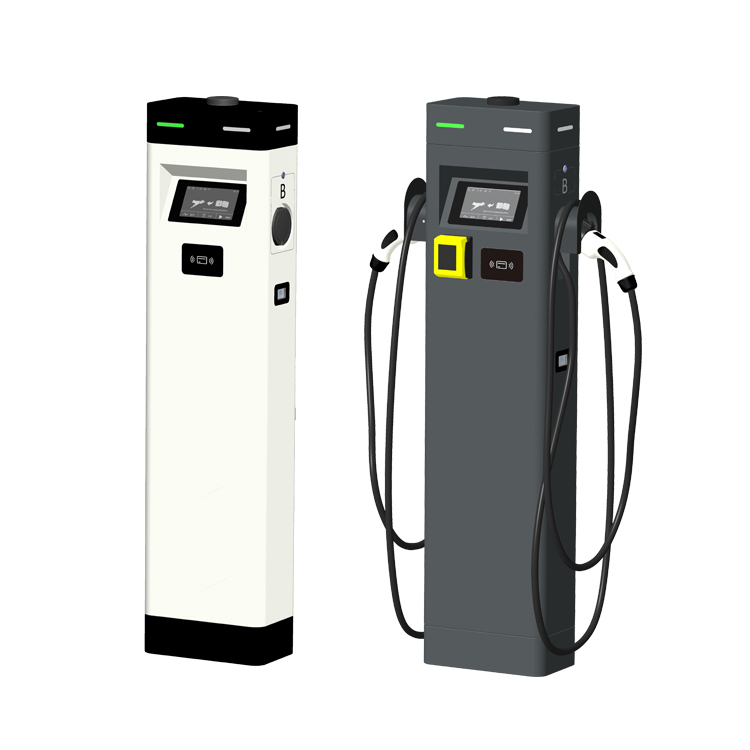

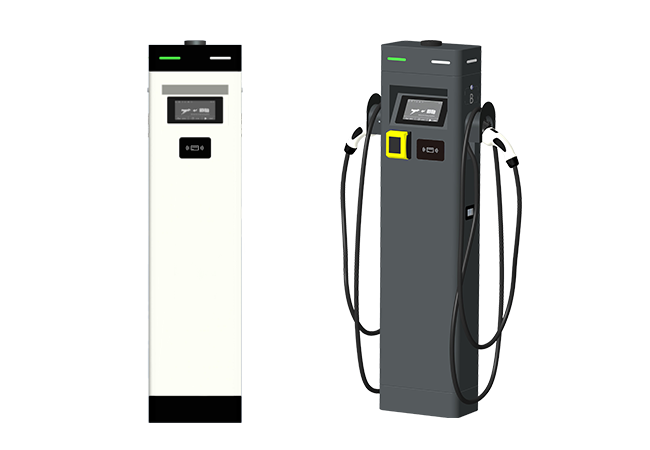

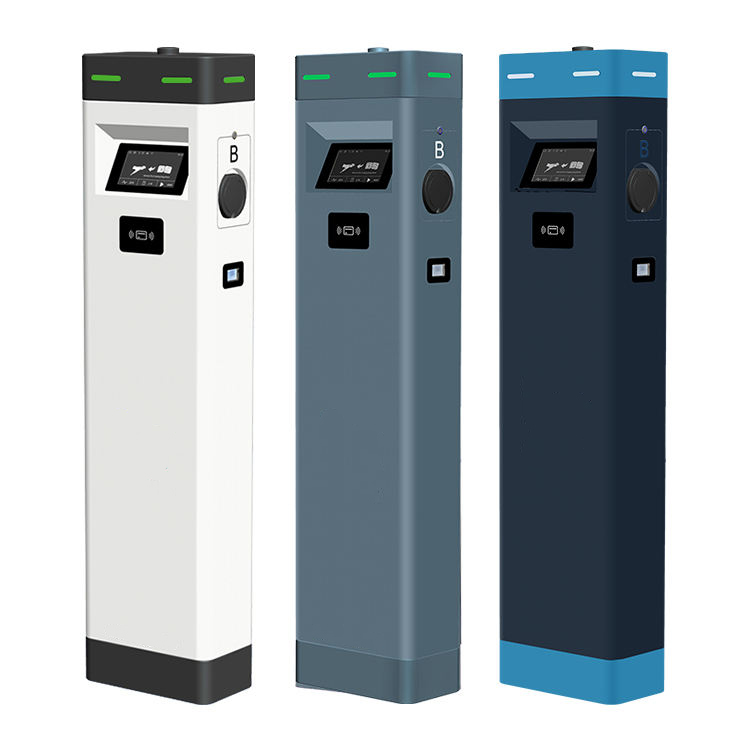

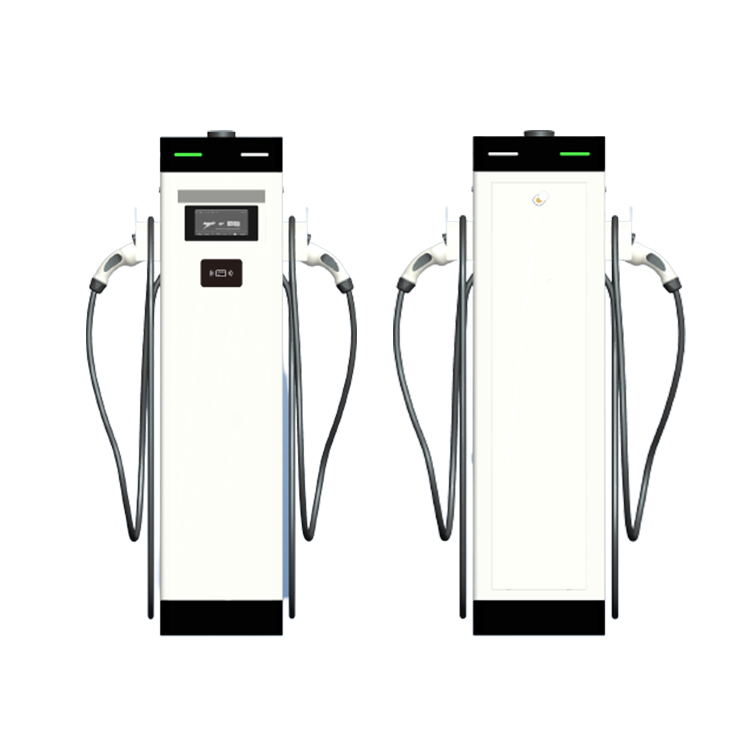

COMMERCIAL CHARGINGac
Charging power 2x7kW(single phase) or 2x22kW(three phase) optional
CERTIFICATIONS

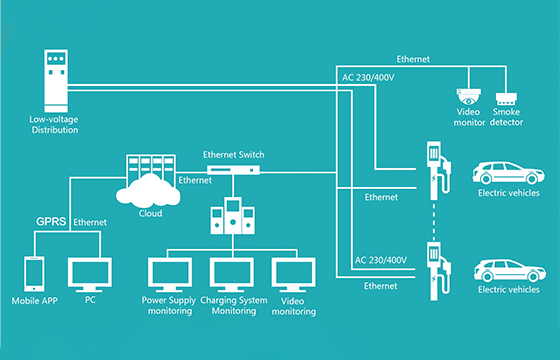

Complete EV charging solution
Training program
After-sales service
| Power | 7kW | 22kW |
| Input Voltage | Single Phase 230V | Three Phase 400V |
| Output Current | Max. 32A x 2 | |
| Working Frequency | 50~60Hz | |
| Connector Type | Type-2 Socket x 2 | |
| MCB | 50A MCB x 2 | |
| RCD | Type-B RCCB x 2 | |
| SPD | 40kA SPD x 2 | |
| Meter | MID Certified Meter x 2 | |
| Network Connectivity | Ethernet, WLAN, Cellular | |
| Communication Protocols | OCPP1.6J, OCPP2.0 | |
| Working Temperature | -30 °C ~ 50 °C | |
| Storage Temperature | -40 °C ~ 70 °C | |
| Working Humidity | < 95% Non-Condensing | |
| Ingress Protection | IP55 | |

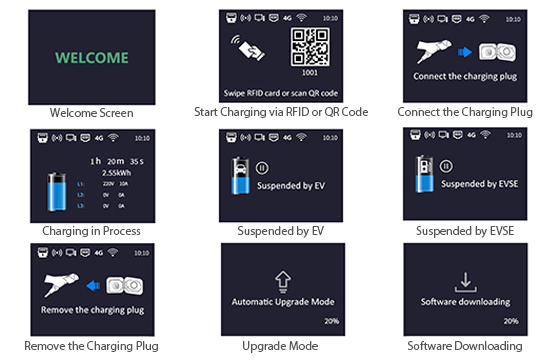

| Indications | Standby(Blue), Charging(Flashing Blue), Fault(Red), Waring(Flash Red) | |
| Buttons | 2 x Physical Button for socket selection | |
| Dimension (H x W x D, mm) | 1435mm*350mm*200mm | |
| Certification | CE, IEC 61851-1, IEC 62196-2 | |
| RFID | ISO 14443 A/B | |
| Display | 7" LCD | |
| Weight | 40Kg | 42Kg |
Grasen made a remarkable appearance at the Smarter E Europe 2025, one of the most influential renewable energy and smart charging expos in Munich, Germany. We unveiled the one-stop…
Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

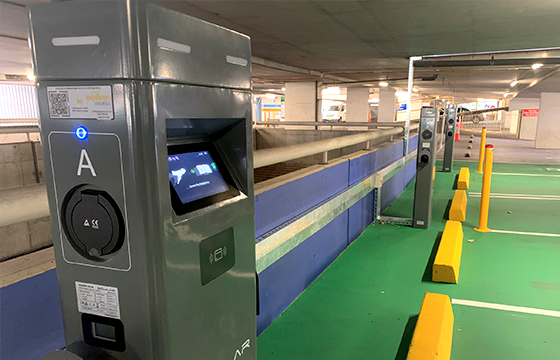

Grasen 22kW Commercial AC Charger for Public Parking Lot has a dual power input system and can charge two vehicles at 22kW at the same time.
