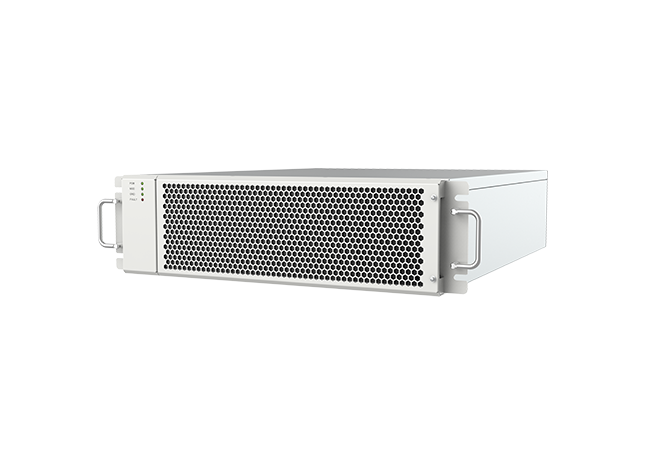

Bidirectional DC/AC converter PCS Power Module

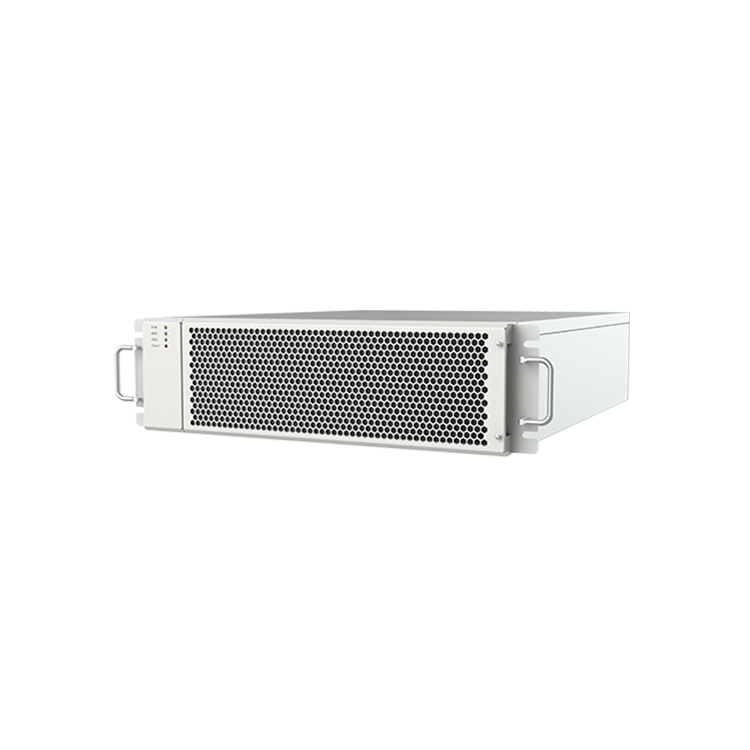

Bidirectional DC/AC Converter

Parallel system power level covers 60kW-600kW

  • Intelligent switching among off-grid, grid-connected, and rectification modes.
  • Reactive power compensation and harmonic compensation.
  • Excellent load adaptability and grid adaptability.
  • Supports AC/DC input and black start.
  • Bi-directional energy flows, seamless forward and reverse switch.
  • Resistant to high and low temperatures, humidity, salt spray, and other harsh environments

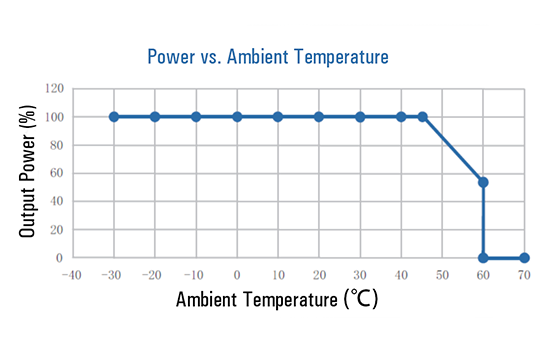

power vs ambient temperature

Wide Operating Temperature Range

  • The wide temperature range of -30℃ to 60℃ ensures the converter can operate reliably and efficiently in different environmental conditions. The efficiency of the converter can be affected by the temperature. Grasen DC AC bidirectional converter can maintain a high level of efficiency even in extreme temperatures.


  • Modular design, easy configuration and maintenance, and convenient expansion.
  • Support access to single-phase load, support 100% unbalanced load.

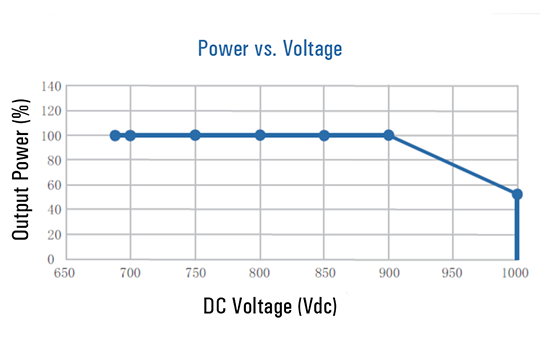

power vs. voltage

General Specifications

Item Model 60KW
DC Parameters Rated Voltage 800VDC
Voltage Range 680VDC~1000VDC
Max Charging/Discharging Current 88A
AC Input       Parameters Max Input Active Power 60KW
Max Continuous Input Current 86A
Rated Input Frequency 50Hz
Power Factor 0.8cap~0.8ind
AC Output    Parameters Rated Output Voltage 230/400VDC, 3P + N + E
Rated Output Frequency 50Hz
Max Continuous Output Current 86A
Max Output Active Power 60kVA
General Working Temperature -30 °C ~ +60 °C (>45 °C derating)
Max Efficiency 98.50%
Protection IP20
Dimension(W x D x H) 436mm*550mm*130mm
Communication BMS Communication Interface CAN, RS485
EMS communication interface Ethernet, RS485
EMS communication protocol Modbus TCP/Modbus RTU

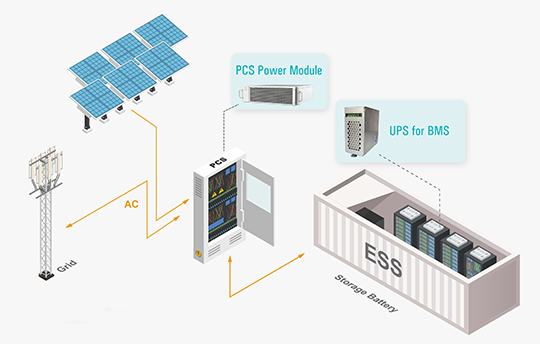

Applications of Bidirectional DC/AC Converter

  • Renewable energy systems

    Bidirectional DC/AC converters are commonly used in renewable energy systems such as solar photovoltaic (PV) and wind power systems. They convert DC power generated by renewable sources to AC power that can be fed into the grid and vice versa.
  • Uninterruptible power supplies (UPS)

    Bidirectional DC/AC converters are often used in UPS systems to provide backup power in the event of a power outage. They can convert DC power from batteries to AC power to power critical loads, and can also convert AC power from the grid to DC power to recharge the batteries.
  • Energy storage systems

    Bidirectional DC/AC converters are also used in energy storage systems such as batteries and supercapacitors. They can convert DC power from the storage system to AC power that can be used by the load, and can also convert AC power from the grid or renewable sources back to DC power to charge the storage system.

Success Stories

  • Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

    420kW Ultra-fast Charger
  • As a local charging network operator, one of our customers from the Republic of Kazakhstan built this EV charging station with Grasen DC fast chargers, which are used to charge Tesla.

  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    grasen dc fast charger case for america
  • Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.

    dc fast charger for audi
